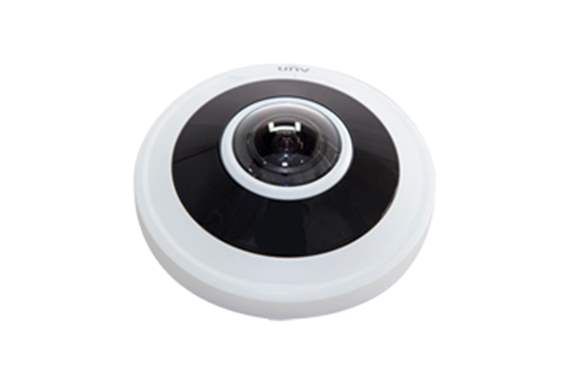

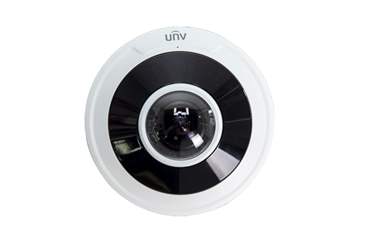

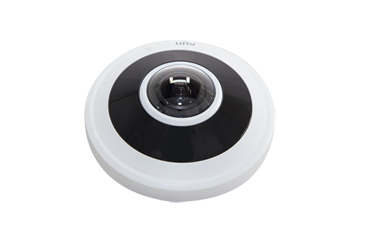

IPC814SR-DVSPF16

Camera

Image sensor

1/3", progressive scan, 4.0 megapixel, CMOS

Lens

1.6mm@ F1.6

Angle of View (H)

180°

Shutter

Auto/Manual，shutter time：1/6 s ~1/100000 s

Minimum Illumination

Colour: 0.02 Lux (F1.6, AGC ON)

0 Lux with IR

Day / Night

IR-cut filter for day & night function

Digital noise reduction

2D/3D DNR

S/N Ratio

>55dB

IR Range

UP to 10m(33 ft)

Defog

Digital Defog

WDR

120dB

Video

Compression

Ultra265, H.265, H.264,MJPEG

H.264 code profile

Baseline profile, Main Profile, High Profile

Frame Rate

Main Stream : (2560×1440) : Max.25fps;

Sub Stream: (1920×1080) : Max.25fps;

Third Stream: D1(720 x 576): Max.25fps

BLC

Supported

OSD

Up to 8 OSDs

Privacy Mask

Up to 8 areas

ROI

Up to 8 areas

Motion Detection

Up to 4 areas

General Function

Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Audio

Audio Compression

G.711

Two-way audio

Supported

Suppression

Supported

Sampling Rate

8 KHZ

Storage

Edge Storage

Micro SD, up to 128GB

Network Storage

ANR

Network

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP

Compatible Integration

ONVIF(Profile S, Profile G), API

Live View Display

Mount Type

Support table, wall, and ceiling

Display Mode

Support 9 display modes in total (including display modes of mount types and decoding modes):

Original Image，Fisheye+4PTZ，Panoramic，360°Panoramic+1PTZ，180°Panoramic，Fisheye+3PTZ ，Fisheye+4PTZ，360°Panoramic+6PTZ，Fisheye+8PTZ

Interface

Network

1 RJ45 10M/100M Base-TX Auto-adaptive Ethernet

General

Power

DC12V±25%,PoE(IEEE 802.3af)

Power consumption: Max. 11 W

Dimensions (Ø x H)

Φ125x 43.7 mm (Φ4.9” x 1.7”)

Weight

0.39kg(0.86lb)

Working Environment

-40°C ~60°C (-40°F ~ 140°F), Humidity :10%~95% RH

Ingress Protection

IP66

Vandal Resistant

IK10

Reset Button

Supported
